SCD ELECTRONICS CO., LTD

VISIBLE LED

Emitter/Lamp

• High radiant intensity

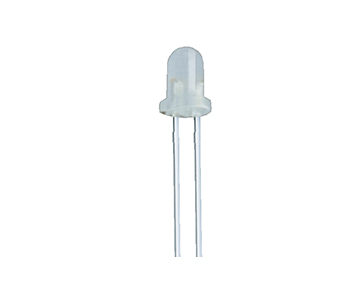

• 3mm&5mm through-hole packages
• 2.54mm Lead spacing
• Low forward voltage

• Consumer
• IR Touch-Panel
• Industrial equipment
• Other Infrared application systems

Specification

Product	DataSheet	VF		Dimension (mm)	λp (nm)	View Angle	Ie_Min (mW/sr)	Ie_Typ (mW/sr)
Product	DataSheet	VF(V) typ.	VF(V) max.	Dimension (mm)	λp (nm)	View Angle	Ie_Min (mW/sr)	Ie_Typ (mW/sr)
HIR333/H0		1.45	1.65	5mm	850	30	7.8	15
HIR333C/H0		1.45	1.65	5mm	850	30	7.8	15
IR333-A		1.2	1.5	5mm	940	20	7.8	20
IR333/H0		1.2	1.5	5mm	940	40	5.6	7.8
IR333/H0/L10		1.2	1.5	5mm	940	40	11	20
IR333C		1.2	1.5	5mm	940	20	7.8	15
IR333C/H0/L10		1.2	1.5	5mm	940	40	7.8	10
IR333C/H2		1.2	1.5	5mm	940	30	7.8	15
SIR333-A		1.3	1.65	5mm	875	20	7.8	20
HIR323C		1.45	1.65	5mm	850	15	15	30
HIR323C/H0		1.45	1.65	5mm	850	30	7.8	11
IR323		1.2	1.5	5mm	940	30	4	6.4
IR323/H0-A		1.2	1.5	5mm	940	60	2	3.5
SIR323-5		1.3	1.65	5mm	875	35	4	7.8

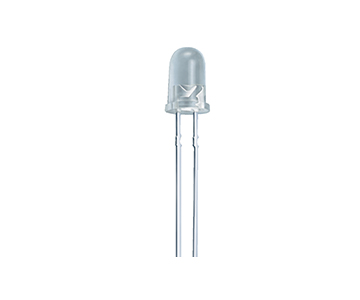

HIR7373C		1.45	1.65	5mm	850	40	7.8	15
IR7373C		1.2	1.5	5mm	940	50	5.6	8
HIR7393C		1.45	1.65	5mm	850	40	7.8	15
IR7393C		1.2	1.5	5mm	940	55	4	6.5

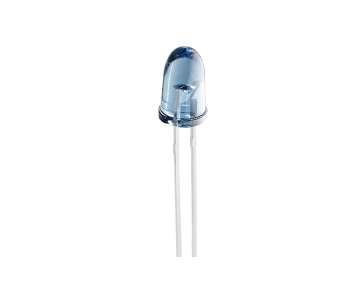

IR383		1.2	1.5	5mm	940	20	15	20
SIR383C		1.3	1.6	5mm	875	20	11	20
IR8353-14C		1.2	1.5	5mm	940	27~43	7.8	11

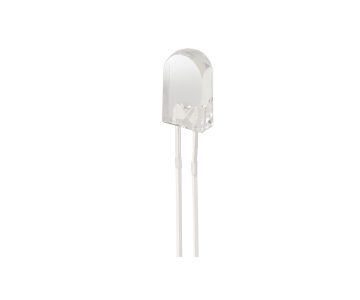

IR533C		1.2	1.5	5mm	940	25	4	7.8

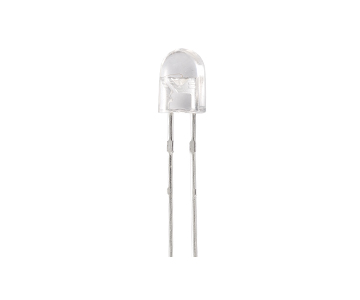

IR3494-30C/H80/L419		1.2	1.5	4mm	940	95(X)45(Y)	2.5	3.5
HIR204C		1.45	1.65	3mm	850	25	7.8	17.6
HIR204C/H0		1.45	1.65	3mm	850	40	11	20
IR204-A		1.2	1.5	3mm	940	35	4	5.6
IR204/H16/L10		1.2	1.5	3mm	940	50	2.8	4
IR204/H60		1.2	1.5	3mm	940	50	4	7
IR204C-A		1.2	1.5	3mm	940	40	4	7.8
IR204C/H16/L10		1.2	1.5	3mm	940	50	4	-
SIR204-A		1.3	1.65	3mm	875	30	4	6.4
SIR204C		1.3	1.6	3mm	875	30	4	6.4

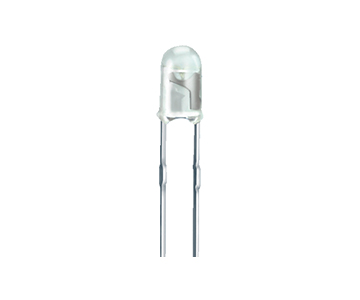

HIR234C		1.45	1.65	3mm	850	30	7.8	15
SIR234		1.3	1.6	3mm	875	30	5.6	9.3
