VISIBLE LED

Photo Diode/Side Look

Side Look

• High speed response
• Low dark current
• Small junction capacitance
• Side-look type

• 3D glass application
• Industrial equipment
• Other Infrared application systems

Specification

Product	DataSheet	Dimension (mm)	λp (nm)	IL_Typ (μA)	BVR_Min.(V)	ID_Max (nA)
Product	DataSheet	Dimension (mm)	λp (nm)	IL_Typ (μA)	BVR_Min.(V)	ID_Max (nA)

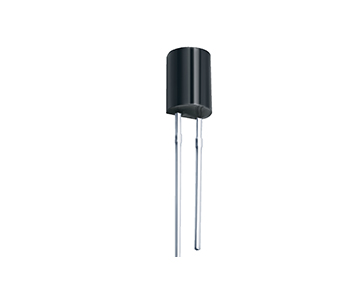

PD438B		4.8x3.8x6.6	940	18	32	30
PD438B/S46		4.8x3.8x6.6	940	18	32	30
PD438C		4.8x3.8x6.6	940	18	32	30
PD438C/S46		4.8x3.8x6.6	940	18	32	30

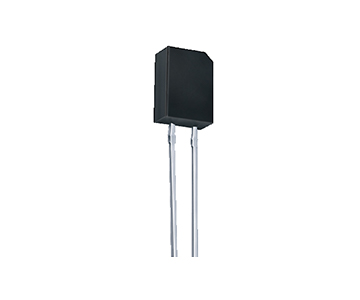

PD638B		5.2x2.75x7.6	940	18	32	30
