Photo Diode/SMD

SMD

• High speed response
• Low dark current
• Small junction capacitance
• SMD type

• 3D glass application
• Industrial equipment
• Other Infrared application systems

Specification

Product	DataSheet	Dimension (mm)	λp (nm)	IL_Typ (μA)	BVR_Min.(V)	ID_Max (nA)
Product	DataSheet	Dimension (mm)	λp (nm)	IL_Typ (μA)	BVR_Min.(V)	ID_Max (nA)

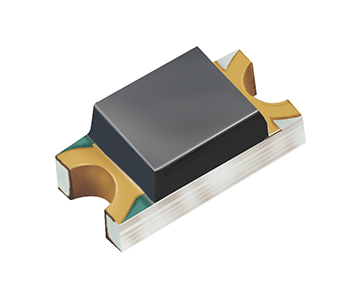

PD15-21B/TR8		3.2x1.5x1.1	940	0.8	32	10

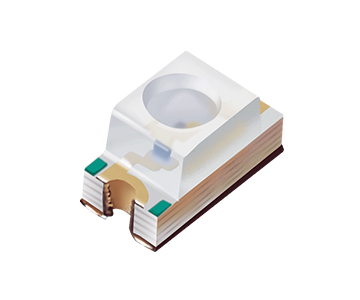

PD15-22B/TR8		3.3x2.7x1.1	940	6.5	32	10
PD42-21B/TR8		3.2x2.4x2.5	940	4	32	10
PD42-21C/TR8		3.2x2.4x2.5	940	5	32	10
PD70-01B/TR7		4.4x3.9x1.2	940	25	32	30
PD70-01C/TR7		4.4x3.9x1.2	940	25	32	30

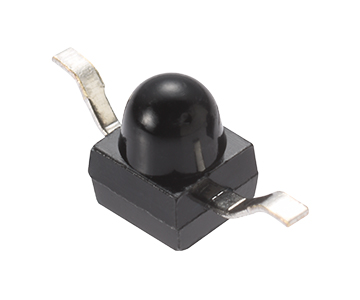

PD95-21B/TR10		2.1x2x2.7	940	4	32	10

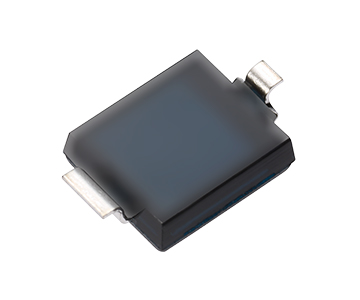

PD70-01B/TR10		4.4x3.9x1.2	940	25	32	30
PD70-01C/TR10		4.4x3.9x1.2	940	25	32	30
