Photo Transistor/Lamp

Infrared LEDs and Silicon Detectors in LAMP type are available with different package size (ex: 3mm, 5mm), intensity, viewing angle, and so on.

• Fast response
• High photo sensitivity

• Consumer
• IR Touch-Panel
• Industrial equipment
• Other Infrared application systems

Specification

Product	DataSheet	Dimension (mm)	λp (nm)	Rise / Fall Time (ns)	Rise / Fall Time (μS)	VCE(SAT)_Max (V)	IC(ON)_Typ (mA)
Product	DataSheet	Dimension (mm)	λp (nm)	Rise / Fall Time (ns)	Rise / Fall Time (μS)	VCE(SAT)_Max (V)	IC(ON)_Typ (mA)

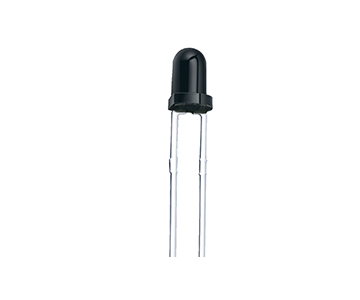

PT204-6C		3mm	940	15/15	Tr(us)=15 Tf(us)=15	0.4	2

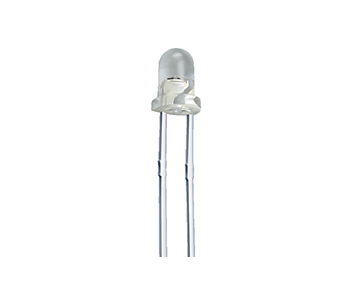

PT204-6B		3mm	940	15/15	Tr(us)=15 Tf(us)=15	0.4	-

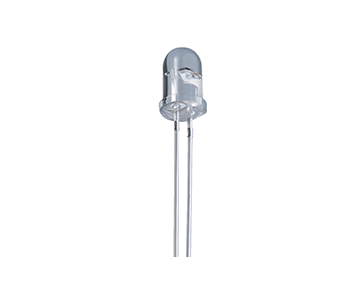

PT333-3C		5mm	940	15/15	Tr(us)=15 Tf(us)=15	0.4	4
PT333-3B		5mm	940	15/15	Tr(us)=15 Tf(us)=15	0.4	3

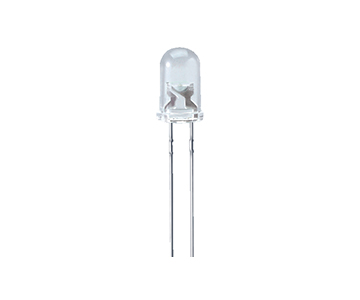

PT334-6C		5mm	940	15/15	Tr(us)=15 Tf(us)=15	0.4	3.5

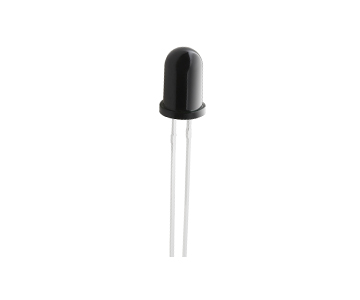

PT334-6B		5mm	940	15/15	Tr(us)=15 Tf(us)=15	0.4	2
PT534-6B		5mm	980	15/15	Tr(us)=15 Tf(us)=15	0.4	1.2

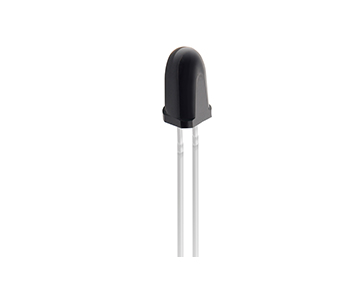

PT1504-6B		5mm	940	15/15	Tr(us)=15 Tf(us)=15	0.4	4
