Photo Transistor/SMD

Infrared LEDs and Silicon Detectors in SMD type are available with different package size, tape form, intensity, viewing angle, and so on.

• Fast response
• High photo sensitivity
• Surface Mount Device

• Consumer
• IR Touch-Panel
• Industrial equipment
• Other Infrared application systems

Specification

Product	DataSheet	Dimension (mm)	λp (nm)	Rise / Fall Time (ns)	Rise / Fall Time (μS)	VCE(SAT)_Max (V)	IC(ON)_Typ (mA)
Product	DataSheet	Dimension (mm)	λp (nm)	Rise / Fall Time (ns)	Rise / Fall Time (μS)	VCE(SAT)_Max (V)	IC(ON)_Typ (mA)

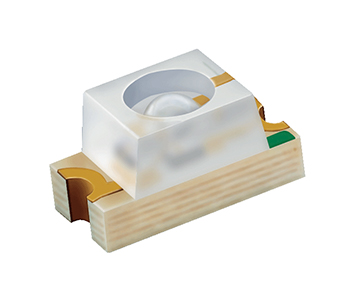

PT11-21C/L41/TR8		3.0x1.5x1.5	940	15/15	-	0.4	0.8

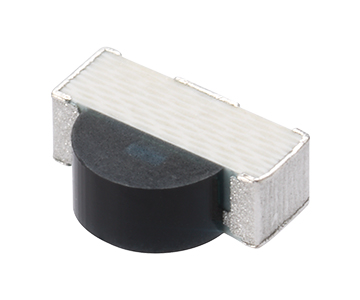

PT12-21B/TR8		3.0x1.0x2.0	940	15/15	-	0.4	1.14
PT12-21C/TR8		3.0x1.0x2.0	890	15/15	-	0.4	1.14

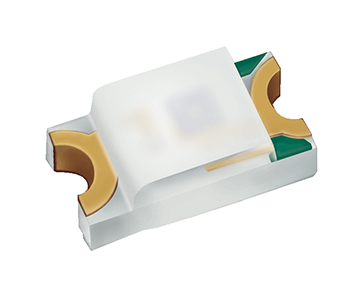

PT15-21B/TR8		3.2x1.5x1.1	940	15/15	-	0.4	0.3
PT15-21C/TR8		3.2x1.5x1.1	940	15/15	-	0.4	0.3

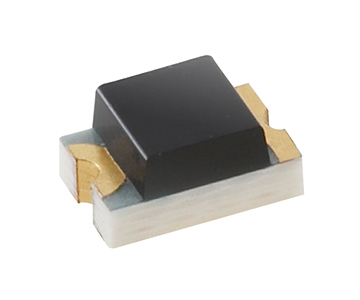

PT17-21B/L41/TR8		2.0x1.25x1	940	15/15	-	0.4	0.65
PT17-21C/L41/TR8		2x1.25x1	940	15/15	-	0.4	1

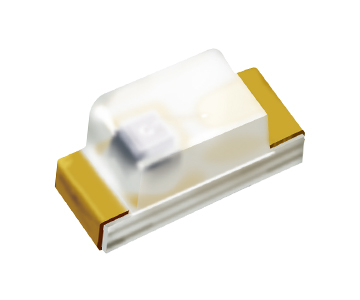

PT19-21B/L41/TR8		1.6x0.8x0.8	940	15/15	-	0.4	0.6
PT19-21C/L41/TR8		1.6x0.8x0.8	940	15/15	-	0.4	0.6
PT26-21B/TR8		3.2x1.6x1.9	940	15/15	-	0.4	2.6
PT26-21C/TR8		3.2x1.6x1.85	940	15/15	15/15	0.4	2.6

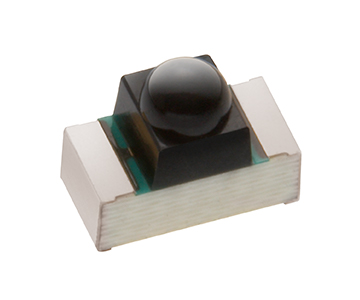

PT26-51B/TR8		3.2x1.6x2.6	940	15/15	Tr(us)=15 Tf(us)=15	0.4	1

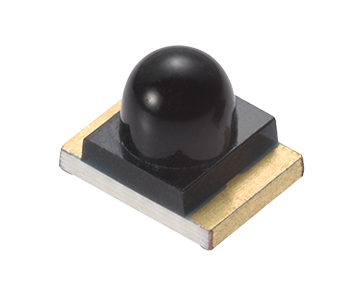

PT42-21B/TR8		3.2x2.4x2.5	940	15/15	-	0.4	3

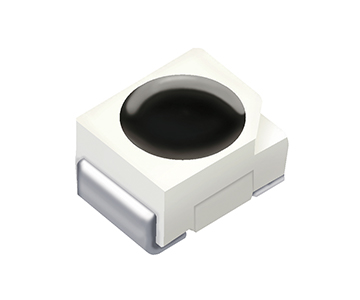

PT67-21B/C14/TR8		3.5x2.7x1.8	940	15/15	Tr(us)=15 Tf(us)=15	0.4	min. 16uA@Ee=0.1mW/cm2
PT67-21C/L41/TR8		3.1x2.8x1.9	940	15/15	Tr(us)=15 Tf(us)=15	0.4	1

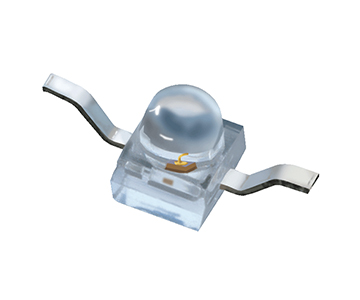

PT91-21B		2.5x2.2x2.7	940	15/15	-	0.4	1.5
PT91-21B/TR10		2.5x2x2.7	940	15/15	-	0.4	1.5
PT91-21B/TR7		2.5x2x2.7	940	15/15	-	0.4	1.5
PT91-21B/TR9		2.5x2x2.7	940	15/15	-	0.4	1.5
PT91-21C		2.5x2x2.7	940	15/15	-	0.4	1.5
PT91-21C/TR10		2.5x2x2.7	940	15/15	Tr(us)=15 Tf(us)=15	0.4	1.5
PT91-21C/TR7		2.5x2x2.7	940	15/15	-	0.4	1.5
