VISIBLE LED

0.5W-1W

Everlight’s mid power LED provides excellent light efficiency with low profile. Based on the advanced plastic material, the thermal charateristics are better improved so that the light emmiting area can be optimized. Moroever, the simple and reliable structure gives the stable quality, with the proof of the market.

Features

• Full color coverage for the exterior application
• Good Light Efficiency
• Low profile
• Improved thermal features
• Top View LED

Other Applications

• Exterior Ligting
• Tail Lamp/Break Light
• Turning Light
• DRL/Fog Lamp
• Positioning Light
• Reading Light

Specification
ProductDataSheetDimension (mm)Forward Voltage (V)ColorWavelength(nm)Chromaticity Coordinate Typ(x,y)Chip quantityBrightnessPower levelDriving current [mA]
A09K-C71501H-AM3.4*3.3*1.83.1White0.33,0.3419000 mcd0.5150
A09K-PA1501H-AM3.4*3.3*1.83.1PC Amber0.57,0.4215600 mcd0.5150
A09K-UR1501H-AM3.4*3.3*1.82.2Red61317100 mcd0.5150
A09K-SR1501H-AM3.4*3.3*1.82.2Super Red62914500 mcd0.5150
A09K-UY1501H-AM3.4*3.3*1.82.2Yellow58915600 mcd0.5150

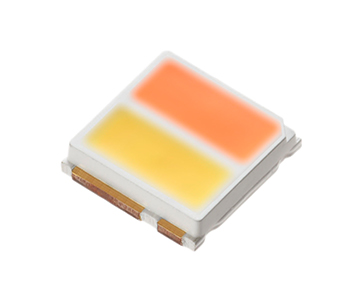

3735-C8PA1501H-AM3.7*3.5*0.8Cool White: 3.2
PC Amber: 3.2
White
PC Amber
White: 0.325, 0.325
PC Amber: 0.57, 0.42
2Cool White:47 lm
PC Amber:27 lm
0.5Cool White: 150
PC Amber: 150
CH3535E-UR3501L-AM3.5*3.5*2.32.2Red619160 lm1350
CH3535E-SR3501H-AM3.5*3.5*2.32.2Super Red630145 lm1350
