VISIBLE LED

led3_above_1w

Above 1W

Everlight’s high power LED provides the selection of 1W~3W. Based on ceramic technology, thermal features supports all materails achieve its best performace. Also, the glass phosphor gives the sustainable color uniformity in high operation temperature in long run.

Features

• High Power Operation 1~3W
• Small Light Emitting area
• Low profile
• Advanced thermal features
• Stable color uniformity in long operation

Other Applications

• Exterior Ligting
• HeadLamp
• Turning Light
• DRL/Fog Lamp
• Positioning Light
• Reading Light

Specification
ProductDataSheetDimension (mm)Forward Voltage (V)ColorChromaticity Coordinate Typ(x,y)Chip quantityBrightnessPower levelDriving current [mA]
XI3030-C03501H-AM3.0*3.0*0.83.1White0.325,0.3341120 lm1350
XI3030-PA3501M-AM 3.0*3.0*0.83.1PC Amber0.575,0.415170 lm1350

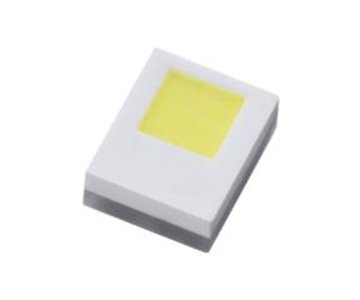

ALFS1BD-C010001L1-AM2.0*1.6*0.83.5White0.332,0.3321320 lm31000
ALFS2BD-C0PA07001L1-AM2.9*2.4*0.853.3White
PC Amber
White: 0.33, 0.33
PC Amber: 0.57, 0.42
2White:220 lm
PC Amber: 120 lm
2White: 700
PC Amber: 700
