VISIBLE LED

under_05w

Under 0.5W

Evelight’s low power LED fits industrial norm and evolves in many variants to fulfill different requirements. Wide variety of colors with lead frame or ceramic gives designers many possibilities.

Features

• Wide selection of LED
• Variant colors
• Single/Multi-chip
• Top/Side View
• Plastic/Ceramic substrate for different thermal usage

Other Applications

• Switch Backlighting
• Interior Lighting
• Reading Light
• Grill Lamp

Learn More

No.	File Name	Update	Donwload
1	ISE flyer	2022.1.18	档案下载

Specification

Product	DataSheet	Dimension (mm)	Forward Voltage (V)	Color	Wavelength(nm)	Chromaticity Coordinate Typ(x,y)	Chip quantity	Brightness	Power level	Driving current [mA]
Product	DataSheet	Dimension (mm)	Forward Voltage (V)	Color	Wavelength(nm)	Chromaticity Coordinate Typ(x,y)	Chip quantity	Brightness	Power level	Driving current [mA]
65-11-C70200H-AM		2.21.41.35	3.1	White		0.3,0.3	1	1400 mcd	0.1	20
65-11-IB0100L-AM		2.21.41.35	3.1	Ice Blue		0.18,0.23	1	140 mcd	0.1	10
65-11-SB0100L-AM		2.21.41.35	3.1	Sky Blue		0.16,0.08	1	112 mcd	0.1	10
65-11-UB0200L-AM		2.21.41.35	3.1	Blue	468		1	224 mcd	0.1	20
65-11-UG0200H-AM		2.21.41.35	3.1	Green	523		1	900 mcd	0.1	20
65-21-UR0200H-AM		2.21.41.35	2	Red	618		1	710 mcd	0.1	20
65-21-UY0200H-AM		2.21.41.35	2	Yellow	592		1	710 mcd	0.1	20
67-11-C70200H-AM		3.52.81.85	3.1	White		0.3, 0.3	1	1400 mcd	0.1	20
67-11-C70100H-AM		3.52.81.85	3.1	White		0.3, 0.3	1	710 mcd	0.1	10
67-11-IB0100L-AM		3.52.81.85	3.1	Ice Blue		0.18,0.23	1	224 mcd	0.1	10
67-11-SB0100L-AM		3.52.81.85	3.1	Sky Blue		0.16,0.08	1	112 mcd	0.1	10
67-11-UB0200H-AM		3.52.81.85	3.1	Blue	468		1	224 mcd	0.1	20
67-11-UG0200H-AM		3.52.81.85	3.1	Green	523		1	1120 mcd	0.1	20
67-21-UR0200L-AM		3.52.81.85	2	Red	623		1	300 mcd	0.1	20
67-21-UY0200H-AM		3.52.81.85	2	Yellow	590		1	710 mcd	0.1	20
67-41-PA0600H-AM		3.52.81.85	3.1	PC Amber		0.57,0.42	1	2240 mcd	0.2	60
67-41-C70301H-AM		3.52.81.85	3.1	White		0.33,0.34	1	2240 mcd	0.2	30
67-41-UR0501H-AM(IHL)		3.52.81.85	2.2	Red			1	2500 mcd	0.2	50
67-41-UY0501H-AM		3.52.81.85	2.2	Yellow	590		1	2240 mcd	0.2	50
67-41-SR0501H-AM		3.52.81.85	2.2	Super Red	630		1	1800 mcd	0.2	50
57-11-C70200H-AM		4.04.03.6	3	White		0.3,0.3	1	1120 mcd	0.1	20
57-11-IB0100L-AM		4.04.03.6	2.9	Ice Blue		0.19,0.25	1	140 mcd	0.1	10
57-11-SB0100L-AM		4.04.03.6	3	Sky Blue		0.16,0.08	1	140 mcd	0.1	10
57-11-UB0200H-AM		4.04.03.6	3.1	Blue	468		1	224 mcd	0.2	20
57-21-UR0200H-AM		4.04.03.6	2	Red	622		1	710 mcd	0.2	20
57-21-UY0200H-AM		4.04.03.6	2	Yellow	590		1	710 mcd	0.2	20
67-63-RGB0201H-AM		3.52.81.4	R:1.95 G:3.1 B:3.0	Red Green Blue	R:627 G:525 B:457		3	Red: 560 mcd Green: 1120 mcd Blue: 180 mcd	0.2	Red: 20 Green: 20 Blue: 20
67-11S-C80600H-AM		2.83.50.7	2.8	White		0.329,0.342	1	30 lm	0.3	100
62-117D-W80650H-AM		5.63.00.65	3.2	White			1	30 lm	0.3	65
3011-C70201H-AM		3.01.11.2	3	White		0.3,0.28	1	710 mcd	0.1	20
3011-PYG0201H-AM		3.01.11.2	3	Yellow Green		0.44,0.28	1	710 mcd	0.1	20
3011-UB0201H-AM		3.01.11.2	3	Blue	457		1	180 mcd	0.1	20
3011-UG0201H-AM		3.01.11.2	3	Green	523		1	710 mcd	0.1	20
3011-UR0201H-AM		3.01.11.2	1.9	Red	622		1	560 mcd	0.1	20
3011-UY0201H-AM		3.01.11.2	1.9	Yellow	589		1	560 mcd	0.1	20
CH1216-C8W80801H-AM		1.61.20.8	Cool White: 3.0 Warm White: 3.0	Cool White Warm White		Cool White: 0.322,0.336 Warm White: 0.466,0.422	2	Cool White: 23 lm Warm White: 20 lm	0.4	Cool White: 80 Warm White: 80
CH2525-RGBY0401H-AM		2.52.50.75	R:2.0 G:2.8 B:3.0 Y:2.4	Red Green Blue Yellow	R:623 G:527 B:460 Y:590		4	Red: 900 mcd Green: 2240 mcd Blue: 355 mcd Yellow: 900 mcd	0.2	Red: 40 Green: 40 Blue: 40 Yellow: 40
67-21-UR0200H-AM		3.52.81.85	2	Red	618		1	710 mcd	0.1	20
67-41-UR0501H-AM		3.52.81.85	2.2	Red	615		1	2800 mcd	0.2	50
67-11S-G81000H-AM		2.83.50.7	2.8	White		0.33,0.34	1	35 lm	0.3	100
62-117D-G80650H-AM		5.63.00.65	3.2	White			1	24 lm	0.3	65
3011-SR0201H-AM		3.01.11.2	1.9	Super Red	629		1	450 mcd	0.1	20

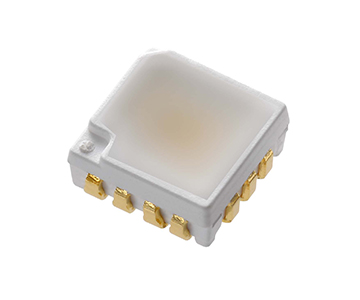

EL3534-RGBISE0391L-AM		3.53.41.33	5	Red Green Blue		CIE x = 0.3127, CIE y = 0.3290	3	Typical Luminous Flux W: 1300mcd @D65	0.2	Red: 12 Green: 10 Blue: 10
